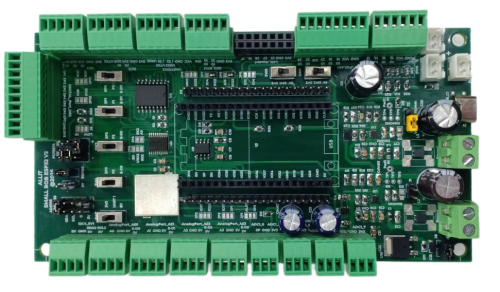

Our ESP32 mainboard (KS-SBOB-ESP32-R1.1) is designed to seat ESP32-WROOM-32U and ESP32-WROOM-32D 38 pin modules featuring the dual-core version of the Xtensa LX6 microprocessor. It is targeted at functional custom assemblies where modularity and professional features are more important than cost optimization for mass production. This makes them ideal for makers who want to replace generic break-out boards with well protected power inputs and extended GPIO and ADC inputs. At the same time it avoids placing generic peripherals such as relays, LAN or opto-couplers on the board since the later are not always needed and many extension boards exist for exactly this purpose.

The board includes the following extra features:
- PCF8574 GIO expander
- ADS1115 16bit 4-channel ADC with extra 5V precision voltage reference and noise shielding for precise analog sensor measurements
- 8 channel level shifting / voltage translation IC for working with 5V sensor signals
- 3 separate power supply (2x 5VDC and 1x 7-12VDC) inputs with OVP, UVP, RP, surge protection, noise filters
- extra header for LAN module at the back of the board using ESP32 integrated LAN with support for cables to provide flexibility to mount the LAN port in other sections of the housing

ESP32 and special IC pins are routed to professional plugable terminal blocks allowing to unplug peripherals without detaching modules and have the following default assignments:

• SPI 2 ports (port 1 [SPI based LAN W5500] and DAC channels 1&2, SPI port 2)
• I2C 4 ports (1, 2 & 3 [3V3], I2C port 4 [5V])
• UART 1 port (ESP UART2, 3V or 5V TTL)
• ESP32 ADC 4 ports (1, 2, 3, 4 [3V])
• ADS1115 ADC 4 ports (1, 2, 3, 4 [5V])
• Digital I/O header 8 channels
• 14 pin LAN header for LAN8720 module with patch support

In addition all 38 pins of the ESP32 module can be accessed by a standard pin header.

For more information on the product please contact our sales team at This email address is being protected from spambots. You need JavaScript enabled to view it.

UTS Industrial Load Sequencers (ILS) transform your electrical loads into IoT smart loads which can dynamically react to grid conditions. The UTS ILS system is compatible with most industry standard bus protocols yet offers a high degree of freedom to customize everything you want without having to commit to a proprietary ecosystem or single vendor solution. It not only improves your power quality and stability by avoiding unnecessary current spikes or brownouts but even makes it possible to retrofit and operate machines designed for a much larger mains feed in power constrained environments. Imagine a running a 24kW drying oven on a 15(40A) single phase meter with resistive heating elements - UTS ILS makes that possible.

Even in situations where power is not the problem, dumb loads increase your peak power and can cause line instability even in the presence of unsupervised load controllers, overload relays and so on.

The UTS ILS system enables you interact with countless sensors and peripherals outside of your machine to combine them into a well integrated electrical machine park. By being compatible with open-source platforms like Home Assistant you are free to customize machine supervision chains, dashboards, protocols and notification - all while keeping control of your local cloud without introducing third party dependencies or costly licensing schemes. The use of scripts and templates makes it possible to easily duplicate your line setups and reuse your existing proven workflows.

UTS ILS has been tested for many different applications involving resistive, capacitive and inductive loads including electrical industrial ovens, large capacitive lighting loads in indoor farming as well as pumping stations and large motors. It is uniquely capable of retrofitting existing solutions without having to replace existing machine controller by offering an input layer for PIDs, PLCs etc.

Typical standard assemblies include control cabinets with 4 to 16 load control channels but there is no limit as how many channels you can integrate into a load sequencing configuration since every controller can coordinate tasks with other controllers in the local cloud. Controllers are also inexpensive such that adding cabinets becomes affordable.

You can choose from a wide variety of option incl. feedback & control loops for relays incl. SSRs, additional temperature sensors, protection options, meters and indicators.

ALLIT is your consultant for everything related to smart farming. With over 15 years of hand-on experience on 3 continents we can offer practical insights, affordable solutions and sound planning for all stake holders - be it farming communities, governmental organizations, private businesses or NGOs.

Our portfolio includes:

• Precision agriculture services
  - Site surveys, incl. soil, climate, water, vegetation
  - Infrastructure planning incl. irrigation, smart farming systems, IT and telecommunications, energy, machinery, greenhouses, buildings etc.
  - Geo hazard assessment
  - Environmental surveys
  - Safety, security and site monitoring systems and services
  - Equipment installation, training, service and maintenance

• Biodiversity
  We have studied a wide range of plants in our planting projects incl.
  - 350 species of tropical trees
  - 300 species of medicinal plants
  - 500 species and cultivars of food plants
  - 25 species of fish
  Our nursery has provided tens of thousands of saplings to customers all over Thailand as well as countless plant materials to research institutions. Our experience covers wet land restauration, reforestation and eco-system restoration on degraded sites. Using our in-house access to rare seeds and saplings can help you to diversify into more profitable crops.

• Agro-forestry
  We provide a complete range of services for your agro-forestry operations with special emphasis on sustainability, resilience to climate change, biodiversity and ecological impact while creating value for generations. From food forest over valuable tropical hard woods to feedstock for the pharmaceutical and cosmetics industry - we will bring your operation online without all the expensive trial and error. Whether it be afforestation or inter-cropping for agricultural cash crops, we will turn your requirements into a complete project plan and provide easy to understand implementation strategies.

• Food processing and standardization
  Tired of the man in the middle making all the profit? Stressed by seasonally low post-harvest commodity prices? Many of our clients have decided to move up the value chain by implementing in-house or community processing. Drying, extraction, roasting, fermenting, cooking, distilling, concentrating or simply climate controlled storage - we can consult you on your processing options and also get you in touch with service providers.

The LDS series of lightning distance sensors for an important addition to any standard weatherstation aimed at public safety. The sensor element made in Austria has been carefully integrated into an RF optimized outdoor IoT device which can detect lighting strikes and their related energies from a storm cell base up to 40km away from your location. This information is fed in real time to local and internet cloud servers and can be used to issue warning notifications via instant messaging services or trigger alarm automations such as warning lights or sirens, automatic closing of windows or garage doors etc.

This information can be incredibly useful for work place safety and planning such as

• outdoor sports activities
• public events
• farming and forestry
• mining
• building maintenance and construction work
• disaster management

The open design is Home Assistant ready and compatible with Opensensemap, Luftdaten and many other open science platforms. Every device comes with free forwarding to these platforms and free data retention for the lifetime of the product.

The sensor comes with WiFi 802.11n and 3 years warranty.

For more information do not hesitate to contact our sales team.
