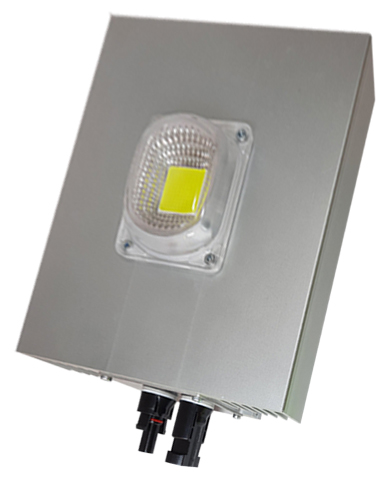

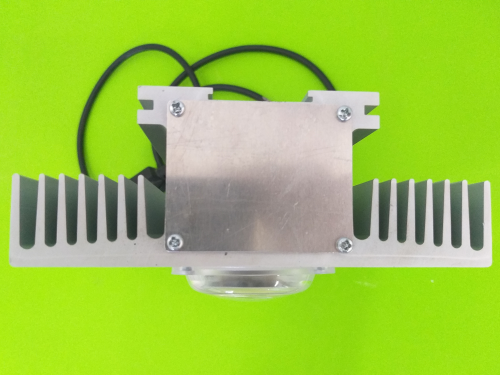

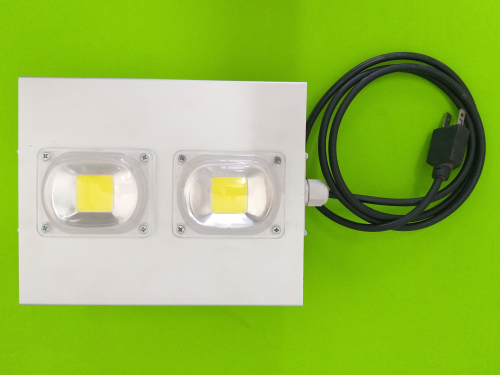

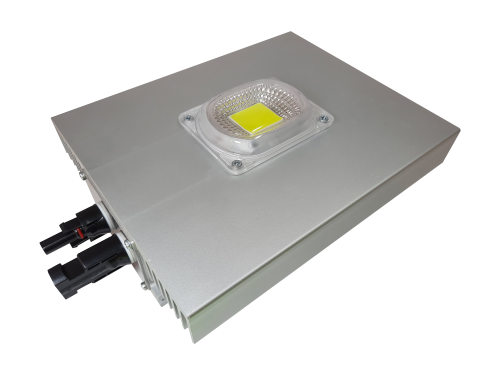

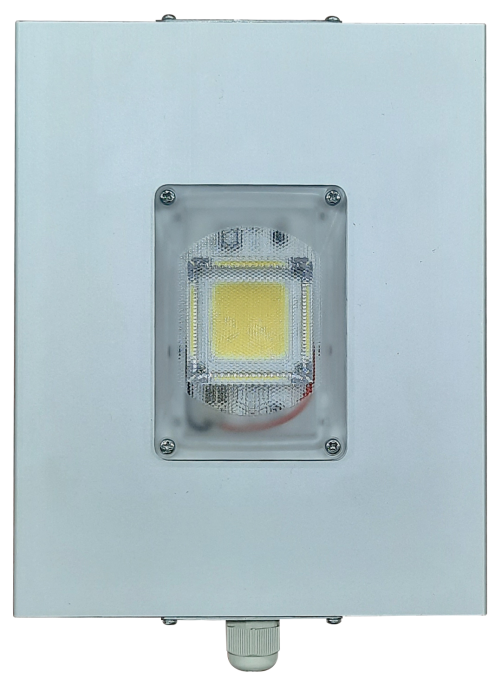

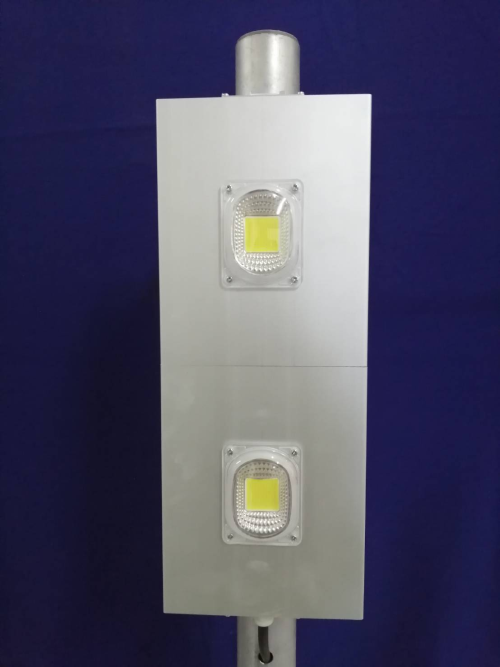

Streetboy high power lighting modules are built around a modular platform. At the core is a massive 2.2kg heat sink that transfers heat away from your precious LED diodes. This is substantially larger than required allowing for ample headroom when it comes to demanding outdoor environments such as tropical climates with high nighttime temperatures. It also counteracts degradation of LEDs and extends their lifetime. The product is available in a variety of configurations such as AC or DC solar powered models, different color and lenses as well as IoT smart lamp options. Multiple units can be combined in a stack for applications requiring a high light output such as intersections or outdoor working or sporting areas.

Below is an overview for common configurations and application examples.

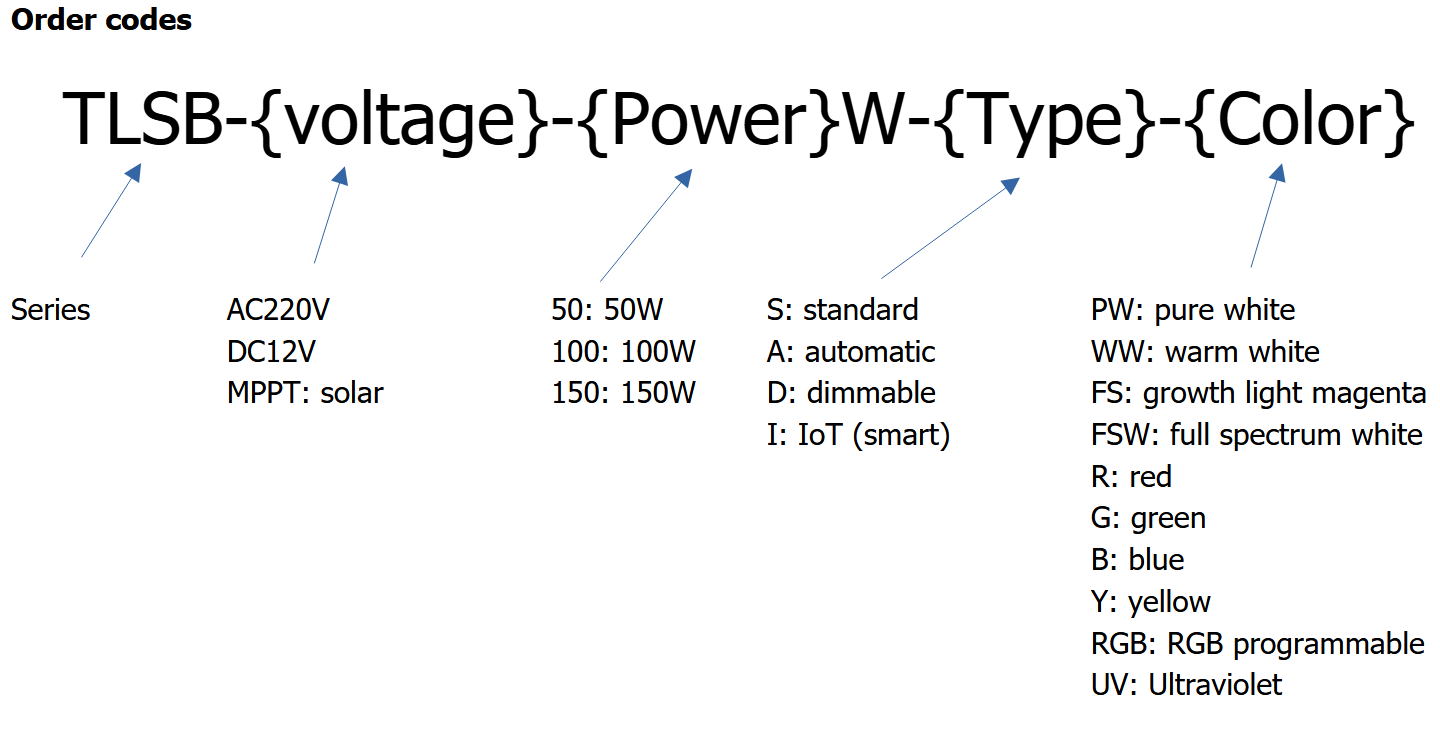

Types: Standard lamp (S), dimming lamp (D), automatic lamp (A), IoT smart lamp (I)

Base models:     50W: TLSB-AC-50W, 100W: TLBS-AC-100W

Variations:    Power supply: AC 220V, DC12V, Solar LED controller (SLC)

W/module:     50W, 100W

Colors:     CW,PW,WW,FS,FSW,R,G,B,Y,RGB,UV

Lens:         PC 90°, PC 110°, glass (s. lens model number)

Lumens:    PW 5,000 lm @ 50W (DC model)

Indoor and outdoor applications

    • Highbay lighting
    • High-performance streetlighting
    • Smart farming / full spectum growth lights
    • Industrial lighting
    • General outdoors lighting (homes, hotels, parks, gardens and other landscape or decorative lighting areas)

Features and Advantages

• Highly effective light output with up to 110 lm/W - saving up to 60% of the energy as compared to incandescent
• Long life COB up to 25,000 Hours in outdoor conditions and around 10,000 hours in hot climates
• Automatic, dimmable and smart IoT models
• Integrated luminaries with advanced thermal design for extended component life-time featuring a massive 2kg anodized Aluminium heatsink and body

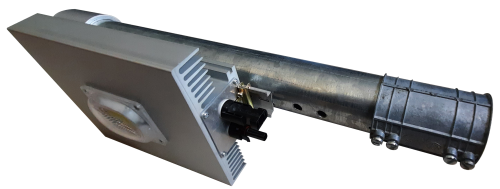

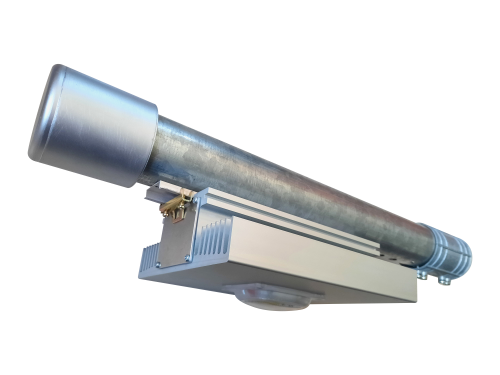

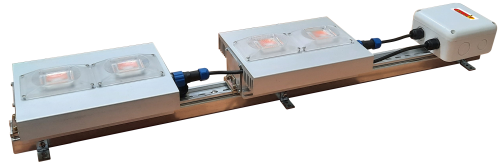

• Service friendly innovative DIN-rail mouting: install, add and exchange in less than a minute
• Green modular design – repairable, serviceable, upgradable, recyclable: no need to throw away large LED luminaires anymore – just unmount the module for service
• Environmentally friendly: reduce electronic waste, no harmful materials such as lead or mercury (unlike CFLs)
• rugged outdoor design and advanced surge protection

Specifications

• LED configuration: Chip on board (COB) 50W optimized for tropical climates, (100W optimized for temperate and cold climates & 150W modules optimized for industrial use on special order)
• Voltage requirements:
  - 195 – 220 VAC (AC model)
  - 12-24 VDC (12VDC model)
  - 12 or 24V battery system (solar MPPT model)

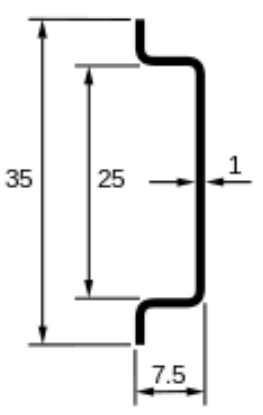

• Mounting type: IEC/EN 60715 DIN-rail (35 mm industry standard), TS35
• Available in a wide variety of colors:
  Pure white (PW):  Color temperature 6000K, CRI 80
  Warm white (WW): Color temperate 3000K, CRI 80
  Full spectrum white (FSW): Color temperate 4700-5200K, CRI 96
  Growth light: magenta
  On special order: RGB, red (R), green (G), blue (B), yellow (Y), UV, IR
• Beam angle standard lens: 90°
• Dimensions: 200 mm L x 160 mm W, 80mm H
• Weight: 2kg (excl. mounting brackets, PC lens model)
